Proteco Mover - Sliding Gate Kit (Rack Option)

Product	Volt	Weight max per leaf	Width max per leaf	Type	Price	Buy
Proteco Kit Mover 6	24v	650kg	13m	Sliding	£617.03+vat RRP £987.25 Save 25%	£740.44 inc.vat
Proteco Kit Mover 8	230v	800kg	13m	Sliding	£564.57+vat RRP £903.31 Save 25%	£677.48 inc.vat
Proteco Kit Mover 15	230v	1500kg	13m	Sliding	£706.96+vat RRP £1,131.14 Save 25%	£848.35 inc.vat

Proteco Kit Mover 6

Volt: 24v

Weight (max. per leaf): 650kg

Angle (max. per leaf):

Width (max. per leaf): 13m

Type: Sliding

£617.03+vat
RRP £987.25 Save 25%

Proteco Kit Mover 8

Volt: 230v

Weight (max. per leaf): 800kg

Angle (max. per leaf):

Width (max. per leaf): 13m

Type: Sliding

£564.57+vat
RRP £903.31 Save 25%

Proteco Kit Mover 15

Volt: 230v

Weight (max. per leaf): 1500kg

Angle (max. per leaf):

Width (max. per leaf): 13m

Type: Sliding

£706.96+vat
RRP £1,131.14 Save 25%

Downloads

Mover Data Sheet

Installation Manual

Q20S Instruction Manual

Q80S Instruction Manual

Kit Contents

1 x Mover gear motor with Q80S/Q20S control unit
2 x Wired Safety Photocells
1 x Radio Remote
1 x Luce Blinker Light

Products bought with Proteco Mover - Sliding Gate Kit (Rack Option)

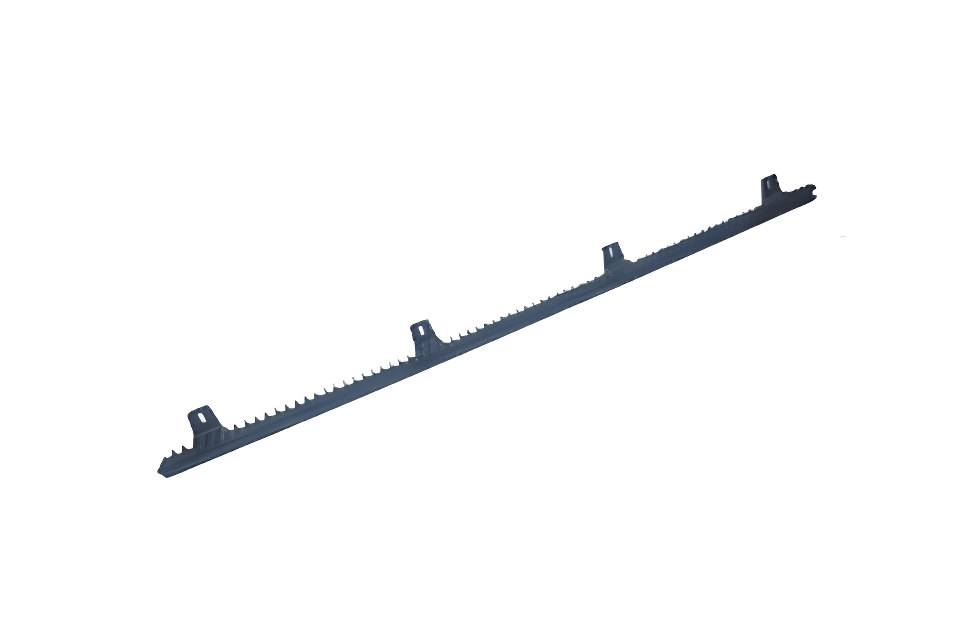

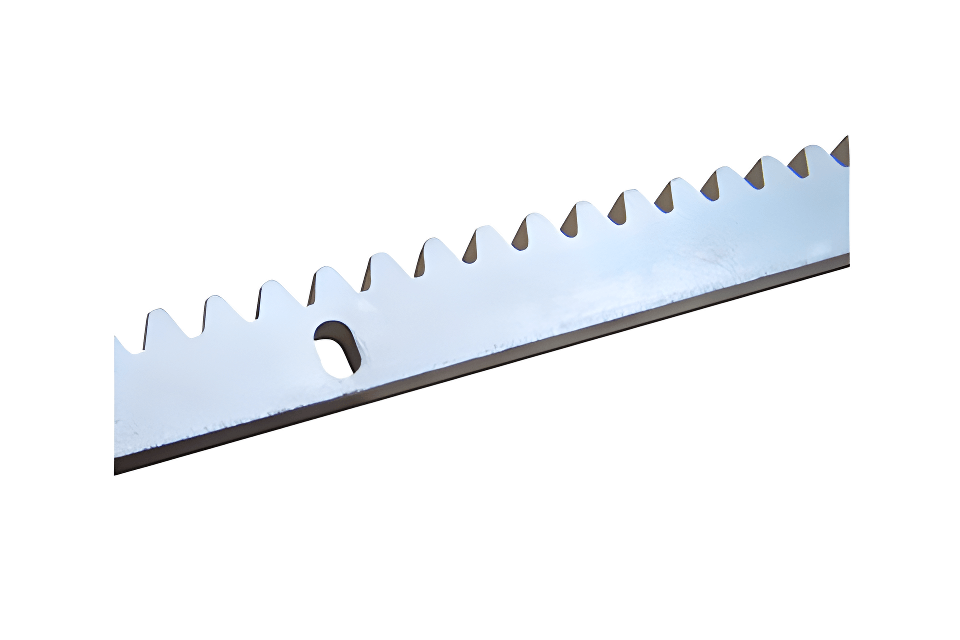

Proteco tooth rack is compatible with all current Proteco sliding gate automation motors. Toothed rack is affixed to the sliding gate, allowing the electric gate motor's drive cog to engage with the teeth and move the gate in the desired direction.

Available Proteco rack types are shown in the links below:

Key Features

Slick design, silent and powerful performance.
Particularly suitable for reduced space installations.
Noble metal gears, bronze transmission shaft.
Adjustable ground plate (horizontally and vertically).
User-friendly release system.
Designed to fit both mechanical and magnetic limit switches.
Embedded control board featuring obstacle detection and plug-in radio receiver.
Ideal solution for residential, industrial and apartment block settings.
The 24v range can operate in emergency mode during power outages by back-up batteries.

Product Overview

The Proteco Basic Kit Mover 6, 8 & 15 options cover sliding gate dimensions up to 13 metres in length through rack driven electromechanical geared motors.

The Mover is versatile and can be simply and accurately installed thanks to its adjustable ground plate.

Each kit contains a die-cast Mover motor built from aluminium, stainless steel and bronze which ensures durability even under intensive use.

Each model has an electromechanical or magnetic limit switch option. The magnetic limit switch system is recommended for installations where the motor may endure extreme weather conditions or a dusty environment.

All the features you would expect from the Proteco brand at an affordable price makes the Kit Mover our most popular sliding gate kit.

Limited Warranty - 3 years on motors, 1 year on other components. See T&C's for more info.

Product Details	Kit Mover 6	Kit Mover 8	Kit Mover 15
Opening speed	5-9 m/min	8.5 m/min	8.5 m/min
Frequency of use	Intensive use	Domestic use only	Domestic use only
Opening direction	Left or right	Left or right	Left or right
IP rate	44	44	44
Inbuilt aerial range	30m	30m	30m
Duty cycle	80%	40%	40%

If you require any hardware for your sliding gate set up such as more rack length or alternative wheels, these can easily be supplied – simply click here or call one of our sales team for more information on 01202 717 191.

Need more information or advice on this kit ? Call our sales support team on 01202 025116 or complete our site assessment form and we can advise the right kit for your installation.
