MyGate myFlow Wheeled Gate Opener Motor Only

Product Volt Weight
max
per leaf		 Angle
max
per leaf		 Width
max
per leaf		 Type Price Buy
myFlow B Right - Motor Only
230v
250kg
No Limit°
Wheeled Motor
£296.65+vat
RRP £474.64 Save 25%

£355.98 inc.vat
myFlow B Right - Motor Only
24v
150kg
No Limit°
Swing Gate
£313.02+vat

£375.62 inc.vat
myFlow R (Reversible) Right - Motor Only
230v
250kg
No Limit°
Wheeled Motor
£335.78+vat

£402.94 inc.vat
myFlow B Right - Motor Only
Volt: 230v
Weight (max. per leaf): 250kg
Angle (max. per leaf): No Limit°
Width (max. per leaf):
Type: Wheeled Motor
£296.65+vat
RRP £474.64 Save 25%
£355.98 inc.vat
myFlow B Right - Motor Only
Volt: 24v
Weight (max. per leaf): 150kg
Angle (max. per leaf): No Limit°
Width (max. per leaf):
Type: Swing Gate
£313.02+vat
£375.62 inc.vat
myFlow R (Reversible) Right - Motor Only
Volt: 230v
Weight (max. per leaf): 250kg
Angle (max. per leaf): No Limit°
Width (max. per leaf):
Type: Wheeled Motor
£335.78+vat
£402.94 inc.vat

Downloads

myFlow Data Sheet
myFlow Instruction Manual
Q80A Instruction Manual

Kit Contents

1 x MyFlow Motor

Products bought with MyGate myFlow Wheeled Gate Opener Motor Only

MyGate MyRF Wired Photocells
MyGate MyRF Wired Photocells
1 x RX Receiver & 1 x TX Transmitter Safety Photocells
£65.01
Gate Motors Single Gate Stop Set
Gate Motors Single Gate Stop Set
1 x Back Stop and 1 x Mid Stop in a black powder coated finish for single gates
£39.70
Q80A Board & Receiver (No Housing)
Q80A Board & Receiver (No Housing)
Proteco/myGate 230v Q80A Swing Gate Board & Receiver (No Housing)
£349.00

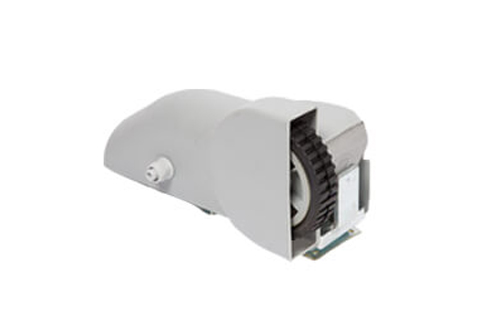

The myGate myFlow electromechanical wheel operator for swing gates. This motor is ideal where long light gates are in place.

The motors can open inwards or outwards with unlimited opening angles.

The system will also work where gates open onto a sloping driveway up to a 12° incline (20cm rise).

Easy to install and a perfect solution where gates are tight against a wall or house.



How do I tell if I need a left or right hand kit?

The motor is usually mounted on the inside of the property for security. With this in mind view the gates from inside the property looking outwards (the gates will normally, swing toward you). If the hinge appears on the left, you need a left-hand kit; if it's on the right you need a right-hand kit.



Product Details

myFlowB

myFlowR

myFlow24

Motor Power Supply

230v~50Hz

230v~50Hz

  24V dc

Max Draw.

1,2-1,7A

  1,2-1,7A 0,5-0,75A

Power

280W

  250W 50W

Capacitor

8µF

  8µF -

Thermal Protection

150°C

  150°C -

Protection Rating

IP44

  IP44 44

Revolutions

 1400 rpm  900 rpm 1600 rpm

Working Temperature

 -20° - +55°  -20° - +55°  -20° - +55°
Opening Time (90°) 20m/min  20m/min  24m/min
Leaf Weight 150Kg  150Kg 150kg
Opening Angle No Limit  No Limit No Limit
Maximum Slope Angle 12°  12° 12°
Maximum rise/fall 20mm  20mm   20mm
Duty Cycle 30%  30%  80%



Need more information or advice on this motor ? Call our sales support team on 01202 717 191.



Downloads

myFlow Data Sheet
myFlow Instruction Manual
Q80A Instruction Manual

Kit Contents

1 x MyFlow Motor
Trustpilot
Proteco Price Match Promise Order before 3pm Why buy from us? Gate Safe
By continuing to use the site you agree to our privacy and cookies policy. Accept

Gate Automation

Please select what type of automation you require for your gate/s. Double & Single Swing refer to motors which attach to the gate and pillar of a swing motion gate. Double & Single Underground refer to motors which lay beneath the ground which attach to the hinge end of swing motion gates. Choose Sliding if you require lateral moving gate automation and Wheeled if you require a motor which utilises a wheeled motor to drive your gate/s.

Motor Voltage

There are two types of power outputs to consider - 24v & 230v. If you need a higher number of operations (opened/closed more than 5-6 times in an hour) during peak periods such as the morning and evening, then you may wish to consider a 24v system.

24v systems are more suitable for higher operation levels as they tend to run cooler than 230v gate motors. However, they do cost more in relative terms, so if you only need to open or close the gate 1-5 times an hour then a 230v system might prove more cost-efficient.

24v motors tend to be used on commercial premises, whereas 230v tend to be used on standard domestic properties. The exception to this rule is sliding gate motors where the reverse is true - 24v sliding gate automation systems tend to be for domestic use, 230v for more intense use (commercial/communal).

24v systems can draw power from battery backup systems meaning they can still operate during any mains power cut (a 230v or 3 phase system would need to be opened with a manual release key).

24v systems can also utilise solar power units as a means of charging batteries, allowing you to site gate automation in rural and remote locations where mains power is unavailable.

Specifications can be found for each product from their datasheet. Each datasheet is downloadable from each product page on this website.

Weight of Gate

All electric gate motors operate up to a maximum weight. This is so the gate will operate in a reliable and safe manner. It is essential to know the weight of each gate leaf in order to choose the correct motor for you installation. If you do not know the weight of your gate/s, send us a photo along with the gate/s dimensions and we can advise.

Gate Width

As with weight, gate motors are designed for gates within certain dimensions. The most important dimension is the width of the gate. To ensure you select the right motor to operate your gate you must know the width of each gate that requires automation.

Opening Angle

Each motor has a maximum angle to which it can operate to. Therefore it is important to note how far the gate needs to open in order for a vehicle to enter/exit safely.

Daily Use

The amount of times your gate is used per day is a determining factor when deciding on the right motor for your usage. Motors are designed to operate within a certain capacity (operations per day) so choosing a motor compatible with your desired use is essential for its durability. Select from the options below the number of times (open & closure = 1 x operation) the gate/s will be operated on an average day.
