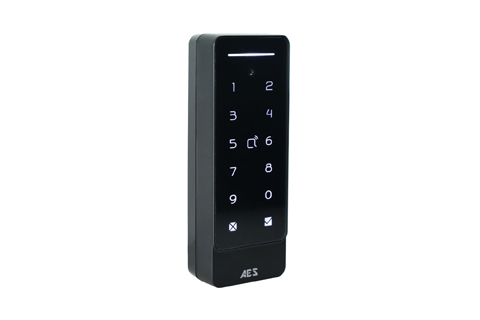

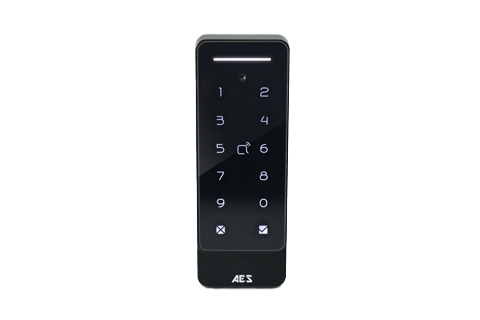

AES OPYN Smart Multi-Access Control Keypad
| Product | Details | Price | Buy |
|---|---|---|---|
|
AES OPYN Keypad |
Control gate and door access with the AES OPYN smart keypad. Supports PIN codes, QR codes, RFID/NFC and BLE access, with app and standalone control. |
£160.00+vat
|
|
AES OPYN Keypad
Control gate and door access with the AES OPYN smart keypad. Supports PIN codes, QR codes, RFID/NFC and BLE access, with app and standalone control.
£160.00+vat
Kit Contents
1 x OPYN Keypad
1 x PoE Plug
1 x IEC Lead (Kettle Lead)
1 x Accessory Bag (Screws, Connectors etc)
1 x PoE Plug
1 x IEC Lead (Kettle Lead)
1 x Accessory Bag (Screws, Connectors etc)
Products bought with AES OPYN Smart Multi-Access Control Keypad
AES Opyn-Multi 4G-IB Video Intercom
Surface-mount black video call point with a touchscreen display, a power supply, built in 4G modem, and SIM card options.
£1584.60
Opyn Touch Screen Monitor
IP - Touch Screen Android Monitor compatible with the Opyn System.
£295.00
AES e-LOOP Mini
Wireless Vehicle Detection System
£295.00
The OPYN Keypad can be integrated with the wider AES OPYN range or used as a standalone access control keypad, making it suitable for both new installations and upgrades to existing access control systems.
Multiple Ways to Gain Access
Rather than limiting users to a conventional keypad code, the OPYN Keypad supports several methods of entry:
-
PIN Code – conventional keypad access using individual PIN credentials.
-
QR Code – create QR credentials with configurable validity periods and usage limits, ideal for temporary or visitor access.
-
RFID / NFC – supports MIFARE 13.56MHz credentials for quick contactless access.
-
BLE Access – wireless access using compatible mobile and OPYN functionality.
This gives installers and property owners greater flexibility when managing permanent users, visitors, contractors or temporary access.
Manage Access Through the OPYN App
When connected to the OPYN platform, access can be managed remotely through the AES OPYN app.
Users can create and update PIN codes, manage permissions and control access from their phone, helping simplify everyday management of the entrance.
For installations where a network connection isn't available or required, the keypad can also be configured to operate locally in Standalone Mode.
Designed for Flexible Installation
The OPYN Keypad can operate as either a reader or controller, giving installers flexibility when incorporating it into new or existing access control systems.
Connectivity options include Wiegand, RJ45 networking and relay connections, allowing the keypad to integrate with a range of entrance and access-control equipment.
Whether it is being used alongside an AES OPYN system or as a standalone keypad for an automated gate, the OPYN Keypad provides a flexible way to manage who can access a property.
Ideal for Temporary and Visitor Access
Need to give a visitor, contractor or delivery driver access without providing them with a permanent code?
The OPYN Keypad can generate QR credentials with configurable validity periods and usage limits, allowing access to be provided for a specific period or number of uses.
It provides a convenient way to manage temporary access without sharing permanent entrance credentials.
Specifications

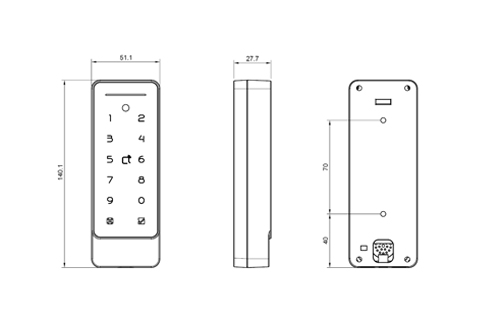

| MATERIAL | Aluminium + Toughened Glass | DIMENSIONS | 139 x 50 x 27 mm |
| COLOUR | Black | IP RATING | IP65 |
| IMPACT RATING | IK08 | OPERATING TEMPERATURE | -30°C to +65°C |
| USER CAPACITY | Up to 100,000 users | QR CODES | Up to 10,000 with time / usage limits |
| ACCESS METHODS | PIN, QR, RFID/NFC, BLE | RFID | MIFARE 13.56MHz |
| CAMERA | 2MP pinhole for QR code reading | SCHEDULING | Up to 6 daily plans |
| LOGS | 30 days | CLOUD CONTROL | Remote management via cloud portal |
| INTERFACES | RJ45, Wiegand, NO / COM / NC | RELAY | 1 Relay |
| MOUNTING | Surface mount | FIRMWARE | OTA or local update |
| OPERATION MODES | Cloud or Standalone |
