AES i-GATE-DUAL GSM Switch

Product Details Price Buy

AES i-GATE DUAL
Unlock access with a call – advanced GSM switch supporting wireless e-Loops and future cloud integration.
£230.00+vat

£276.00 inc.vat

AES i-GATE DUAL
Unlock access with a call – advanced GSM switch supporting wireless e-Loops and future cloud integration.
£230.00+vat
£276.00 inc.vat

Downloads

Quick Start Guide

Kit Contents

1 x i-GATE Dual
1 x SIM Card

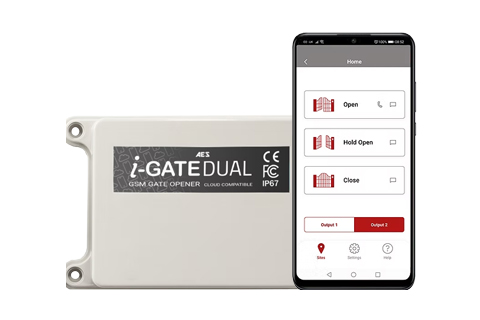

AES i-Gate Dual 4G GSM Gate Opener



The AES i-Gate Dual 4G GSM Gate Opener is a powerful and reliable access control device designed to provide secure remote operation of automated gates, barriers, doors, and other entry systems. Using advanced 4G GSM connectivity, the i-Gate Dual allows authorised users to open or control access simply by making a phone call, sending an SMS command, or using the dedicated cloud management platform.

Designed with professional installers in mind, the i-Gate Dual features two independent relay outputs, allowing you to control two separate devices from a single unit. This makes it ideal for installations where both a vehicle gate and pedestrian gate need to be managed, or where multiple access points must be controlled remotely.

Configuration and management are simple thanks to the AES cloud portal, which allows administrators to add, remove, or edit authorised users remotely. This eliminates the need for on-site programming and makes system management quick and efficient, particularly for commercial or multi-user environments.

The i-Gate Dual is also fully compatible with AES e-Loop wireless vehicle detection systems, enabling seamless integration with safety loops for automated gate installations.

With its robust design, reliable connectivity, and flexible programming options, the AES i-Gate Dual is a popular choice for residential, commercial, and industrial gate automation systems.



Key Features



  • 4G GSM connectivity for reliable remote access control.
  • Dual relay outputs to control two gates, doors, or barriers.
  • Operates via free call, SMS command, or cloud platform.
  • Remote user manangement through the AES cloud portal.
  • Compatible with AES e-Loop wireless vehicle detection.
  • Ideal for electric gates, barriers, garage doors, and access systems.
  • Simple installation for professional



Typical Applications



  • Electric driveway gates
  • Apartment or commercial access gates
  • Vehicle barriers
  • Garage doors
  • Remote door access systems

Technical Specification



DETAILS
Weather Rating IP67
Relays 2
Relay Type N/C and N/O
Relay Load 5A, 24V AC Max
Power Consumption 30mA (standyby), 80mA (When Called)
Modem Model 4G EU, 4G AU, 4G US
Power 12-24V AC/DC (not supplied)
Caller ID Numbers 1280
Time Restricted Caller ID Numbers 250
Automatic Trigger Events per Week 50
Push-to-Exit Time Events per Week 5



Need more information or advice on this product? Call our sales support team on 01202 025094 or drop us a message on our live chat platform.



Downloads

Quick Start Guide

Kit Contents

1 x i-GATE Dual
1 x SIM Card
