Proteco Matrix - 48v Sliding Gate Kit

Product Volt Weight
max
per leaf		 Angle
max
per leaf		 Width
max
per leaf		 Type Price Buy

Proteco Matrix - 48v Sliding Gate Kit with Magnetic Limit Switch
48V
2500Kg
18m
Sliding
£1,091.87+vat
RRP £1,637.95 Save 20%

£1,310.24 inc.vat

Proteco Matrix - 48v Sliding Gate Kit with Magnetic Limit Switch
Volt: 48V
Weight (max. per leaf): 2500Kg
Angle (max. per leaf):
Width (max. per leaf): 18m
Type: Sliding
£1,091.87+vat
RRP £1,637.95 Save 20%
£1,310.24 inc.vat

Downloads

Q90SH Manual
Installation Manual
Data Sheet

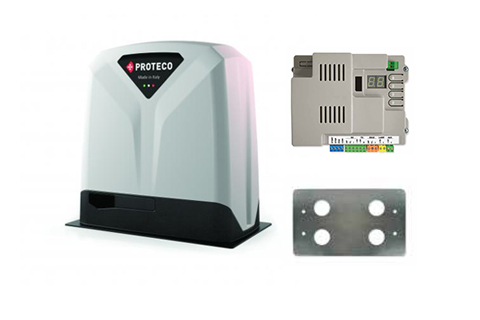

Kit Contents

1 x Matrix Gear Motor with Magnetic Limit Switch
1 x Screws & Fitting pack
1 x Embedded Q90Control Panel

Products bought with Proteco Matrix - 48v Sliding Gate Kit

Proteco Ikon Radio Transmitter
Proteco Ikon Radio Transmitter
Extended radio signal range, and a secure battery compartment with easy access. Operating on a 433.92MHz frequency.
£26.40
Proteco RF40 Wired Photocells
Proteco RF40 Wired Photocells
1 x RX Receiver & 1 x TX Transmitter Safety Photocells
£84.68
Proteco B102 Sliding Gate Rack
Proteco B102 Sliding Gate Rack
1 x Module 4 profile - B102 galvanised steel toothed rack (500 kg) - pre-drilled, screw-fix or welded - 20 x 26 x 1000mm
£38.02
Proteco battery backup
Proteco battery backup
Proteco battery back up for 24v motors for use in the event of a powercut
£23.31
Proteco battery wiring set
Proteco battery wiring set
Proteco battery wiring set for QBAT 1.2 battery back up
£12.49



Proteco MATRIX BLDC – Advanced Sliding Gate Automation

The Proteco MATRIX BLDC is a true BRUSHLESS (R)EVOLUTION in sliding gate automation, engineered for high-intensity use and maximum reliability. With its 6-step digital motor, it can handle up to 250 openings per day, making it ideal for demanding residential, commercial, and industrial applications.

Key Features

BRUSHLESS (R)EVOLUTION

  • 6-Step digital motor version for high-intensity usage
  • Can manage up to 250 openings per day.

POWER

  • Soft start extra power during deceleration and electronic braking system to ensure inertia control even on very heavy gates.
  • M4 and M6 module steel cog-wheel for constantly smooth movement transmission.
  • Magnetic limit switch.

SAFETY

  • Full Encoder control for smart obstacle detection manageent and memo adaptive technology to fit in different weather conditions and to overcome friction changes, avoiding false-stop issues.

TECHNOLOGY

  • Q90 electronic board built on top of the gear-motor for easy wiring and better protection.
  • Twinning function to synchronise two mirror sliding gates.
  • Scheduled Maintenance: tracks the number of gate openings and lets you set a countdown to the next service.
  • Energy-saving function to reduce both the consumption of wired accessories and the system when the automation is in stand-by mode.
  • Optional back-up battery housing inside the motor.
  • Direct plug to manage traditional and resistive (8K2Ω) type safety edges.

Technical Data

  MATRIX BLDC
Power Supply 230V 50/60Hz
Motor Voltage 4.5A
Start-up Current 1.4A
Rated Current 48V dc
Rated Power 350W
Start-up Capacitor -
Standard Capacitor -
Start-up Thrust 1600N
Rated Thrust 1000N
Thermal Cut-off -
Max. Opening Speed 13m/min
Max. Leaf Weight 2500 Kg
Duty Cycle 80%
Operating Temperature -30°C++55°C
IP Rating  44



If you require any hardware for your sliding gate set up such as more rack length or alternative wheels, these can easily be supplied – simply click here or call one of our sales team for more information on 01202 717 191.







Need more information or advice on this kit ? Call our sales support team on 01202 717191 or complete our site assessment form and we can advise the right kit for your installation.



Downloads

Q90SH Manual
Installation Manual
Data Sheet

Kit Contents

1 x Matrix Gear Motor with Magnetic Limit Switch
1 x Screws & Fitting pack
1 x Embedded Q90Control Panel
Trustpilot
Proteco Price Match Promise Order before 3pm Why buy from us? Gate Safe
By continuing to use the site you agree to our privacy and cookies policy. Accept

Gate Automation

Please select what type of automation you require for your gate/s. Double & Single Swing refer to motors which attach to the gate and pillar of a swing motion gate. Double & Single Underground refer to motors which lay beneath the ground which attach to the hinge end of swing motion gates. Choose Sliding if you require lateral moving gate automation and Wheeled if you require a motor which utilises a wheeled motor to drive your gate/s.

Motor Voltage

There are two types of power outputs to consider - 24v & 230v. If you need a higher number of operations (opened/closed more than 5-6 times in an hour) during peak periods such as the morning and evening, then you may wish to consider a 24v system.

24v systems are more suitable for higher operation levels as they tend to run cooler than 230v gate motors. However, they do cost more in relative terms, so if you only need to open or close the gate 1-5 times an hour then a 230v system might prove more cost-efficient.

24v motors tend to be used on commercial premises, whereas 230v tend to be used on standard domestic properties. The exception to this rule is sliding gate motors where the reverse is true - 24v sliding gate automation systems tend to be for domestic use, 230v for more intense use (commercial/communal).

24v systems can draw power from battery backup systems meaning they can still operate during any mains power cut (a 230v or 3 phase system would need to be opened with a manual release key).

24v systems can also utilise solar power units as a means of charging batteries, allowing you to site gate automation in rural and remote locations where mains power is unavailable.

Specifications can be found for each product from their datasheet. Each datasheet is downloadable from each product page on this website.

Weight of Gate

All electric gate motors operate up to a maximum weight. This is so the gate will operate in a reliable and safe manner. It is essential to know the weight of each gate leaf in order to choose the correct motor for you installation. If you do not know the weight of your gate/s, send us a photo along with the gate/s dimensions and we can advise.

Gate Width

As with weight, gate motors are designed for gates within certain dimensions. The most important dimension is the width of the gate. To ensure you select the right motor to operate your gate you must know the width of each gate that requires automation.

Opening Angle

Each motor has a maximum angle to which it can operate to. Therefore it is important to note how far the gate needs to open in order for a vehicle to enter/exit safely.

Daily Use

The amount of times your gate is used per day is a determining factor when deciding on the right motor for your usage. Motors are designed to operate within a certain capacity (operations per day) so choosing a motor compatible with your desired use is essential for its durability. Select from the options below the number of times (open & closure = 1 x operation) the gate/s will be operated on an average day.
