BFT PHOBOS AC B - 230v Single Swing Gate Kit

Product Volt Weight
max
per leaf		 Angle
max
per leaf		 Width
max
per leaf		 Type Price Buy
BFT PHOBOS AC B25 Single
230v
400kg
119°
2.5m
Linear Ram, Ambidextrous
£498.27+vat
RRP £830.45 Save 28%

£597.92 inc.vat
BFT PHOBOS AC B50 Single
230v
500kg
130°
5m (with electric lock)
Linear Ram, Ambidextrous
£612.55+vat
RRP £1,020.92 Save 28%

£735.06 inc.vat
BFT PHOBOS AC B25 Single
Volt: 230v
Weight (max. per leaf): 400kg
Angle (max. per leaf): 119°
Width (max. per leaf): 2.5m
Type: Linear Ram, Ambidextrous
£498.27+vat
RRP £830.45 Save 28%
£597.92 inc.vat
BFT PHOBOS AC B50 Single
Volt: 230v
Weight (max. per leaf): 500kg
Angle (max. per leaf): 130°
Width (max. per leaf): 5m (with electric lock)
Type: Linear Ram, Ambidextrous
£612.55+vat
RRP £1,020.92 Save 28%
£735.06 inc.vat

Downloads

Installation Guide

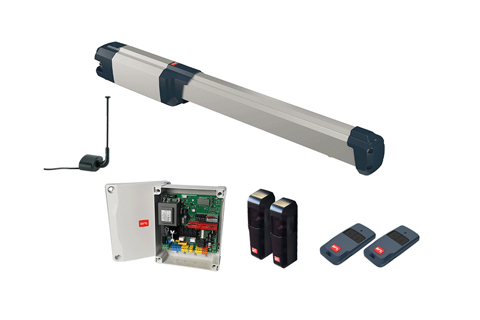

Kit Contents

1 x Phobos AC B Operator
1 x Rigel 6 Control Board & Receiver
1 x Pair of Compacta 180° photocells
2 x Mitto Cool radio transmitters
1 x Radio Antenna
1 x Instruction Manual



Description

The PHOBOS AC B25 and the PHOBOS AC B50 are both irreversible electromechanical 230V operators suitable for swing gate leaves up to 5m long and weighing up to 500kg.

The new Phobos AC B operators are 30% faster than the original AC A range, while also running quieter than the previous model.



Technical Features

  Phobos AC B25 Phobos AC B50
Power Panel Supply 230v

230v
Control Unit Rigel 6 Rigel 6
Operator Type Electromechanical Gates Electromechanical Gates
Max Gate Width 2.5m 5m
Max Length Gate Panel without Electric Lock 2m 3m
Max Gate Weight 400kg @ 2m, 250kg @ 2.5m 500kg @ 2.5m, 250kg @3.5m
Motor Voltage 230v 230v
Power Consumption 210w 210w
Thrust and Traction Force 2000n 2000n
Shaft Working Stroke  360 470
Maximum Angle  119°  130°
90° Opening Time*  18 22
Operation  Work Time Work Time
Slowdown  YES YES
Impact Reaction  Electronic Clutch  Electronic Clutch
Locking Mechanical  Mechanical
Unlocking  Bespoke Key Bespoke Key
Max Opening Cycles Per Hour  15 15
Environmental Conditions  -20 - 55°C -20 - 55°C
Protection Rating  IP44 IP44

 *except decelaration, maximum gate and maximum weight.



Need more information or advice on this kit ? Call our sales support team on 01202 717 191 or complete our site assessment form and we can advise the right kit for your installation.





Downloads

Installation Guide

Kit Contents

1 x Phobos AC B Operator
1 x Rigel 6 Control Board & Receiver
1 x Pair of Compacta 180° photocells
2 x Mitto Cool radio transmitters
1 x Radio Antenna
1 x Instruction Manual
Trustpilot
Proteco Price Match Promise Order before 3pm Why buy from us? Gate Safe
By continuing to use the site you agree to our privacy and cookies policy. Accept

Gate Automation

Please select what type of automation you require for your gate/s. Double & Single Swing refer to motors which attach to the gate and pillar of a swing motion gate. Double & Single Underground refer to motors which lay beneath the ground which attach to the hinge end of swing motion gates. Choose Sliding if you require lateral moving gate automation and Wheeled if you require a motor which utilises a wheeled motor to drive your gate/s.

Motor Voltage

There are two types of power outputs to consider - 24v & 230v. If you need a higher number of operations (opened/closed more than 5-6 times in an hour) during peak periods such as the morning and evening, then you may wish to consider a 24v system.

24v systems are more suitable for higher operation levels as they tend to run cooler than 230v gate motors. However, they do cost more in relative terms, so if you only need to open or close the gate 1-5 times an hour then a 230v system might prove more cost-efficient.

24v motors tend to be used on commercial premises, whereas 230v tend to be used on standard domestic properties. The exception to this rule is sliding gate motors where the reverse is true - 24v sliding gate automation systems tend to be for domestic use, 230v for more intense use (commercial/communal).

24v systems can draw power from battery backup systems meaning they can still operate during any mains power cut (a 230v or 3 phase system would need to be opened with a manual release key).

24v systems can also utilise solar power units as a means of charging batteries, allowing you to site gate automation in rural and remote locations where mains power is unavailable.

Specifications can be found for each product from their datasheet. Each datasheet is downloadable from each product page on this website.

Weight of Gate

All electric gate motors operate up to a maximum weight. This is so the gate will operate in a reliable and safe manner. It is essential to know the weight of each gate leaf in order to choose the correct motor for you installation. If you do not know the weight of your gate/s, send us a photo along with the gate/s dimensions and we can advise.

Gate Width

As with weight, gate motors are designed for gates within certain dimensions. The most important dimension is the width of the gate. To ensure you select the right motor to operate your gate you must know the width of each gate that requires automation.

Opening Angle

Each motor has a maximum angle to which it can operate to. Therefore it is important to note how far the gate needs to open in order for a vehicle to enter/exit safely.

Daily Use

The amount of times your gate is used per day is a determining factor when deciding on the right motor for your usage. Motors are designed to operate within a certain capacity (operations per day) so choosing a motor compatible with your desired use is essential for its durability. Select from the options below the number of times (open & closure = 1 x operation) the gate/s will be operated on an average day.
