FAAC 390 - 24v Articulated Double Swing Gate Kit
| Product | Volt | Weight max per leaf |
Angle max per leaf |
Width max per leaf |
Type | Price | Buy |
|---|---|---|---|---|---|---|---|
| FAAC 390 Articulated Double Swing Gate Kit | 24v |
300kg |
120° |
3m |
Articulated Arm |
£959.00+vat
RRP £1,784.40 |
|
FAAC 390 Articulated Double Swing Gate Kit
Volt: 24v
Weight (max. per leaf): 300kg
Angle (max. per leaf): 120°
Width (max. per leaf): 3m
Type: Articulated Arm
£959.00+vat
RRP £1,784.40
RRP £1,784.40

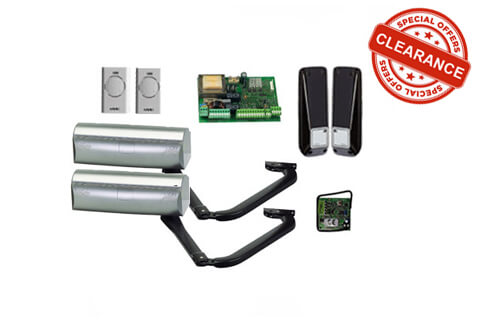

Kit Contents
2 x Motors
2 x Articulated Arms
1 x Pair Wired Safety Photocells
1 x Control Board
2 x Radio Remotes
2 x Manual Release Keys
1 x Instruction Manual
2 x Articulated Arms
1 x Pair Wired Safety Photocells
1 x Control Board
2 x Radio Remotes
2 x Manual Release Keys
1 x Instruction Manual
Electro-mechanical operator with articulated arm for residential swing-leaf gates with single-leaf lengths of 1.8m (3m with electric lock, can be purchased as an additional accessory).
- The system has non reversing motors that hold the gate in the open and closed positions.
- Maxmimum anti-crushing safety thanks to the exclusive control board.
- 24v version has virtual encoder with in-built obstacle detection. If somebody comes into contact with the gate while it's in motion it will stop and back off, or reverse. Also has the option of a battery backup which ensures the gates still operate if there's a powercut.
- Suitable for inward or outward opening gates.
The 24v 390 kit comes with the E024S control panel.
IMPORTANT: to ensure correct operation, make sure that the distance between the gate hinge and the gate pier edge is a maximum of 300mm.
Technical Specifications of FAAC 390 24v
| Power supply voltage | 230 Vac |
| Absorbed power | 40 W |
| Electric motor voltage | 24 Vdc |
| Absorbed current | 2 A |
| Motor rotation speed | 960 r.p.m |
| Reduction ratio | 1:700 |
| Angular speed | 8°/s |
| Max. torque | 200 Nm |
| Operating ambient temperature | -20 °C to +55 °C |
| Protection class | IP 44 |
| Weight | 11.5 kg |
| Dimensions (L x D x H) in mm | 410 x 130 x 130 |
Clearance Items – Important Information
At Gate Motors, our clearance items are offered at the lowest discounted prices and are typically end-of-line (EOL) or obsolete stock. These items are sold as-is and will not carry a manufacturer warranty or be eligible for return.
Please refer to our Consumer Terms & Conditions or Trade Terms & Conditions for full details.
At Gate Motors, our clearance items are offered at the lowest discounted prices and are typically end-of-line (EOL) or obsolete stock. These items are sold as-is and will not carry a manufacturer warranty or be eligible for return.
Please refer to our Consumer Terms & Conditions or Trade Terms & Conditions for full details.
Need more information or advice on this kit? Call our sales support team on 01202 717 191
